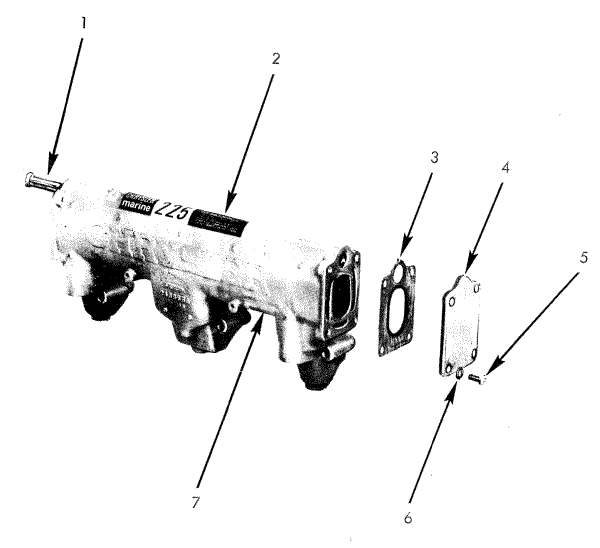

| Ref # |
Description |
Part # |
QTY |
| 1 |
TUBE, Exhaust Manifold Water Outlet |
3527781 |
2 |
| 2 |
DECAL,Chrysler Marine |
*** |
2 |
| 3 |
GASKET, Exhaust Manifold Cover |
2847480 |
2 |
| 4 |
COVER, Exhaust Manifold |
3527869 |
2 |
| 5 |
SCREW,w/WASHER, Exhaust Manifold Cover |
180078 |
8 |
| 6 |
SCREW,w/WASHER |
|
|
| 7 |
MANIFOLD, Exhaust |
3675826 |
2 |
|
GASKET PACKAGE, Exhaust Manifold (Not Shown) |
2585516 |
1 |
|
STUD,Exhaust Manifold (NotShown) |
6025923 |
12 |
|
NUT,Exhaust ManifoldStud (NotShown) |
120368 |
12 |
|
PLUG, Exhaust Manifold Water Inlet Hole (Not Shown) |
3444592 |
4 |
|
PLUG, Exhaust Manifold Drain (NotShown) |
444688 |
6 |
|
PLUG,Exhaust Manifold Center (NotShown) |
444620 |
2 |
|
ELBOW, Exhaust Manifold Cover Inlet (Not Shown) |
E7941M |
2 |
| ***Decals Available: 175, 200, 225 & 250 |
|
|
|
|
