| Ref # |
Description |
Part # |
QTY |
|
NOTE: 1 - Use with C.W Rotation Engine |
|
|
|
NOTE: 2- Use with CC.. Rottion Engine |
|
|
|

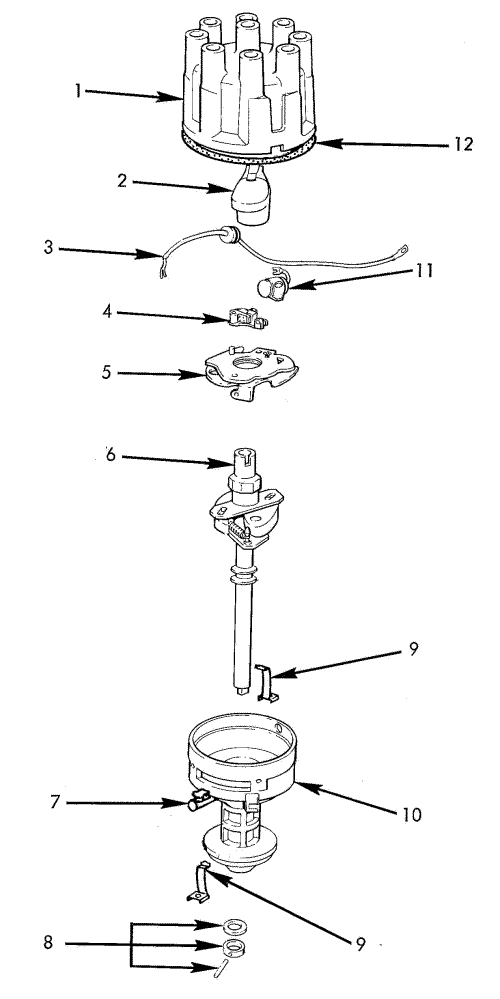

DISTRIBUTOR Ignition |
3438832 |
1 |
| 1 |
CAP |
2098852 |
1 |
| 2 |
ROTOR |
1658535 |
1 |
| 3 |
LEAD, Primary |
2084865 |
1 |
| 4 |
CONTACT SET, Breaker |
2421173 |
|
| 5 |
PLATE, Breaker |
3620824 |
1 |
| 6 |
SHAFT,Governor and Cam |
3620825 |
1 |
| 7 |
OILER |
953717 |
1 |
| 8 |
COLLAR PACKAGE |
3579219 |
1 |
| 9 |
SPRING PACKAGE, Cap |
3620823 |
1 |
| 10 |
HOUSING, w/Bearing |
3620826 |
1 |
| 11 |
CONDENSER |
3420600 |
1 |
| 12 |
GASKET, Cap |
2932678 |
1 |
|
GASKET, Ignition Distributor (Not Shown) |
1326836 |
1 |
|
CLAMP, Ignition Distributor (Not Shown) |
|
|
|
See Note 1 |
1947612 |
1 |
|
See Note 2 |
E7103M |
1 |
|
SCREW, Ignition Distributor Clamp (NotShown) |
|
|
|
See Note 1 |
180079 |
1 |
|
See Note 2 |
181093 |
1 |
|
LOCKWASHER, Dist.Clamp Screw, see Note 2 (Not Shown) |
120214 |
1 |
|
ADAPTER, Ignition Distributor, see Note 2, (Not Shown) |
E7102M
|
1 |
|
COIL, lgnition (NotShown) |
2495531 |
1 |
|
BRACKET , Ignition Coil (Not Shown) |
1688207 |
1 |
|
SCREW,Ignition Coil Bracket (NotShown) |
132930 |
1 |
|
NUT,lgnition CoiI Bracket Screw (NotShown) |
120614 |
1 |
|
NUT, Ignition Coil Terminal (Not Shown) |
120614 |
2 |
|
LOCKWASHER, Ignition Coil Terminal (Not Shawn) |
121801 |
2 |
|
RESISTOR, Ignition Coil Primary (NotShown) |
2444142 |
1 |
|
SCREW, w/WASHER, Resistor Mounting (Not Shown) |
181561 |
1 |
|
SPACER, lgnition Coil Mounting (NotShown) |
1828225 |
|
|
SCREW, w/WASHER, Ignition Coil Mounting Bracket (Not Shown) |
6024015 |
1 |
|
SCREW, Ignition CoiI Mounting Bracket (NotShown) |
181092 |
1 |
|
LOCKWASHER, Ignition Coil Mounting Bracket Screw (Not Shown) |
120214 |
1 |
|
CABLE, lgnition CoiI Secondary |
2421136 |
1 |
|
|
|
|
